RP2040 boards

The RP2040 is a microcontroller chip designed by Raspberry Pi in the UK. It's a dual-core ARM Cortex M0+ running at 125 MHz which provides up to 16 MB of off-chip flash and 246 KB on-chip RAM. It has 30 GPIO pins, 4 of which can be used as analogue inputs, two UARTs, two SPI controllers, two I2C controllers, and 16 PWM channels.

Raspberry Pi also released a board based on the chip, called the Raspberry Pi Pico. Other manufacturers soon followed suit, including Adafruit, Sparkfun, and Pimoroni who have also designed boards based on the RP2040. These boards all have similar performance when running uLisp.

Boards

Raspberry Pi Pico

Adafruit Feather RP2040

Adafruit QT-Py RP2040

Introduction

Originally I recommended the Arduino Mbed OS RP2040 Boards core for the Raspberry Pi Pico, but you should now use Earle Philhower’s Raspberry Pi Pico/RP2040 Arduino core [1] which supports a wide range of RP2040 boards, supports more Serial, SPI, and I2C ports, and gives significantly better performance. See the installation instructions below.

Saving the workspace

The Raspberry Pi Pico and other RP2040 boards use the LittleFS flash filesystem supported by the Raspberry Pi Pico/RP2040 core to allow you to save the entire workspace using save-image.

ARM assembler

The ARM version of uLisp includes an ARM assembler that allows you to generate machine-code functions, integrated with Lisp, written in ARM thumb code. The assembler itself is written in Lisp to make it easy to extend it or add new instructions. For more information see ARM assembler overview.

Installing uLisp from the Arduino IDE

  • First download the latest ARM version of uLisp from the Download uLisp page.
  • In the Arduino IDE install the Raspberry Pi Pico/RP2040 core from Boards Manager.
  • First download the latest ARM version of uLisp from the Download uLisp page.
  • In the Arduino IDE install the Raspberry Pi Pico Arduino core from Boards Manager.

You need version 1.10.0 or later. uLisp will not run with earlier versions.

  • Select Raspberry Pi RP2040 Boards from the Board menu, and the appropriate board from the submenu.

There are three entries for each board; for example:

Raspberry Pi Pico
Raspberry Pi Pico (Picoprobe)
Raspberry Pi Pico (pico-debug)

Select the first of these three options (the others are for debugging).

  • Set Flash Size to the option that gives FS: 1MB. On the Raspberry Pi Pico this is 2MB (Sketch: 1MB, FS: 1MB).

This allocates enough space for use by LittleFS to save the entire workspace with save-image.

You can leave all the other options at their defaults.

  • Upload uLisp to the board.

You should then be able to select the USB port from the Port menu, select Serial Monitor from the Tools menu, and enter Lisp commands.

Putting the board into upload mode

If the upload fails you may need to put the board into upload mode first.

On boards with a reset button, such as the Adafruit boards:

  • Press and hold the Boot button.
  • Press the Reset button.
  • Release the Boot button.

On boards without a reset button, such as the Raspberry Pi Pico:

  • Unplug the USB port.
  • Press and hold the Boot button.
  • Plug in the USB port.
  • Release the Boot button.

Error on save-image

If when you call save-image you get the error;

Error: 'save-image' problem saving to LittleFS

the most likely explanation is that you didn't set the Flash Size option to the appropriate value to reserve memory for LittleFS before uploading uLisp.

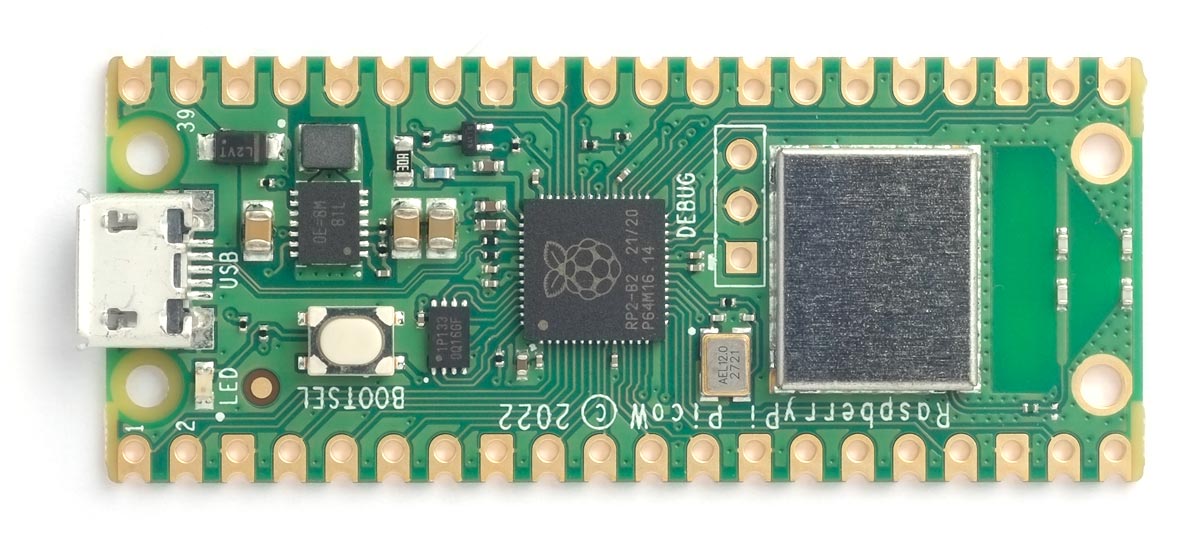

Raspberry Pi Pico

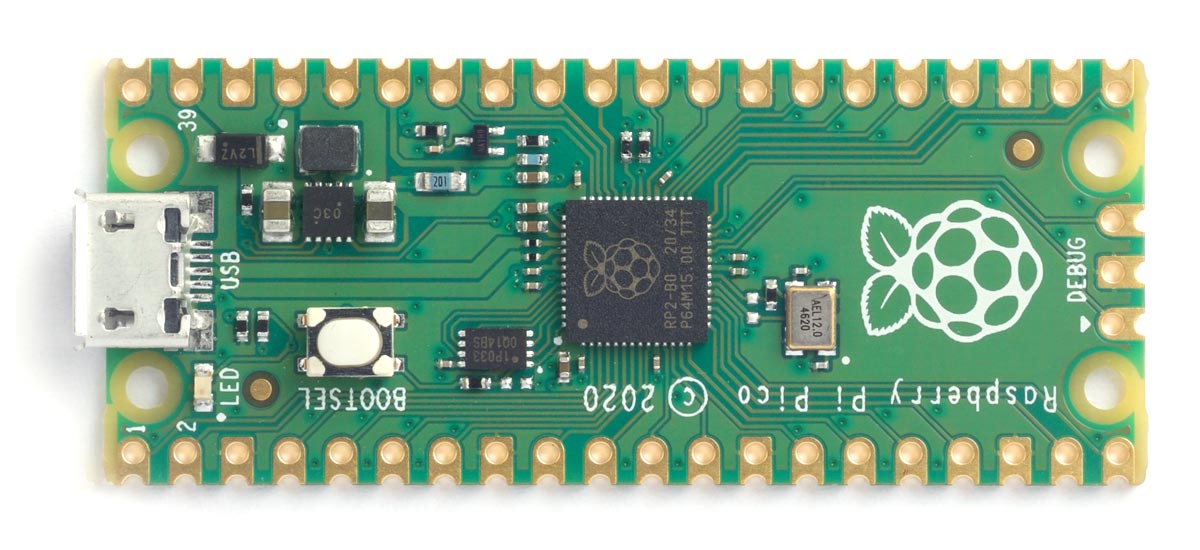

The Raspberry Pi Pico [2] is about the same size as Adafruit's Feather boards:


The Raspberry Pi Pico board includes 2 MByte of flash, and gives access to two serial ports (in addition to Serial0 used for the USB interface), two SPI ports, and two I2C ports.

Pinout

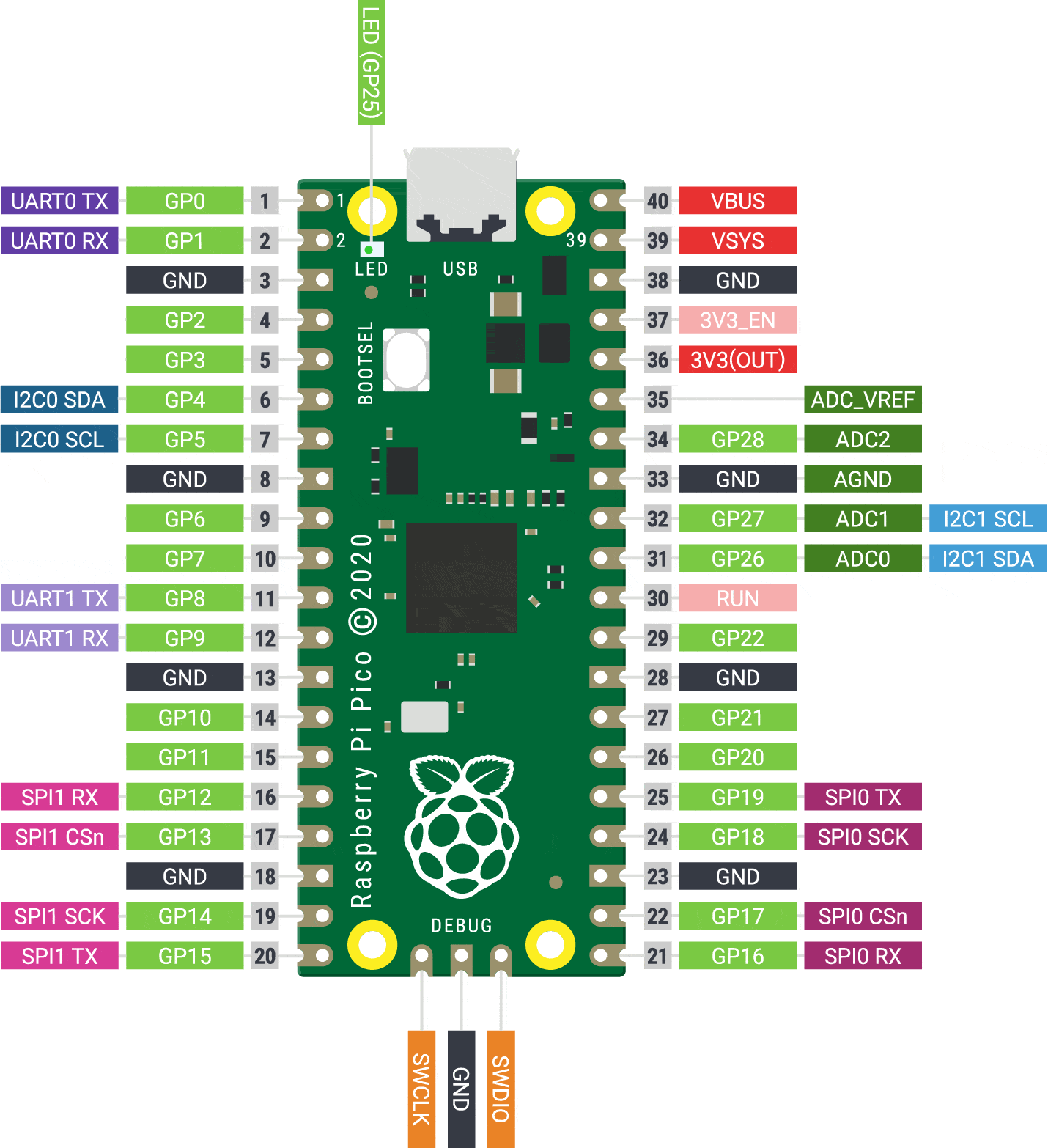

The following diagram shows the pinout of the peripherals available from uLisp with the Raspberry Pi Pico:


LEDs

The Raspberry Pi Pico has a green LED connected to the digital pin 25 which you can flash with the following program:

(defun blink (&optional x)
  (pinmode :led-builtin t)
  (digitalwrite :led-builtin x)
(delay 1000) (blink (not x)))

Run it by typing:

(blink)

All pins can also be used for analogue (PWM) output, so you can pulsate the LED slowly on and off with the program:

(defun pulse ()
  (let (down)
    (loop
     (dotimes (x 256)
       (delay 5)
       (analogwrite :led-builtin (if down (- 255 x) x)))
(setq down (not down)))))

Run it by typing:

(pulse)

Exit from either program by entering ~.

Analogue inputs

The Raspberry Pi Pico has three analogue inputs which you can access on digital pins 26, 27, and 28. They have 12-bit precision.

Analogue outputs

You can generate an analogue output using PWM on any of the digital pins 0 to 28. By default the precision is 8 bits, but you can change it to a value from 4 to 16 bits by calling, for example:

(analogwriteresolution 16)

Playing notes

You can use the note function to play tunes on any pin. For example, the following function scale plays the scale of C on the specified pin:

(defun scale (pin)
  (mapc
   (lambda (n) (note pin n 4) (delay 500))
   '(0 2 4 5 7 9 11 12))
  (note))

For example, connect a piezo speaker between digital pin 10 and GND, and evaluate:

(scale 10)

Serial

The Raspberry Pi Pico has two serial ports: Serial1 on pin numbers 0 (TX) and 1 (RX), and Serial2 on pin numbers 9 (TX) and 9 (RX).

SPI

The Raspberry Pi Pico has two SPI ports: SPI0 on pin numbers 16 (MISO), 19 (MOSI), 18 (SCK) and 17 (SS), and SPI1 on pin numbers 12 (MISO), 15 (MOSI), 14 (SCK) and 13 (SS).

I2C

The Raspberry Pi Pico has two I2C ports: Wire0 on pin numbers 4 (SDA) and 5 (SCL), and Wire1 on pin numbers 26 (SDA) and 27 (SCL).

Adafruit Feather RP2040

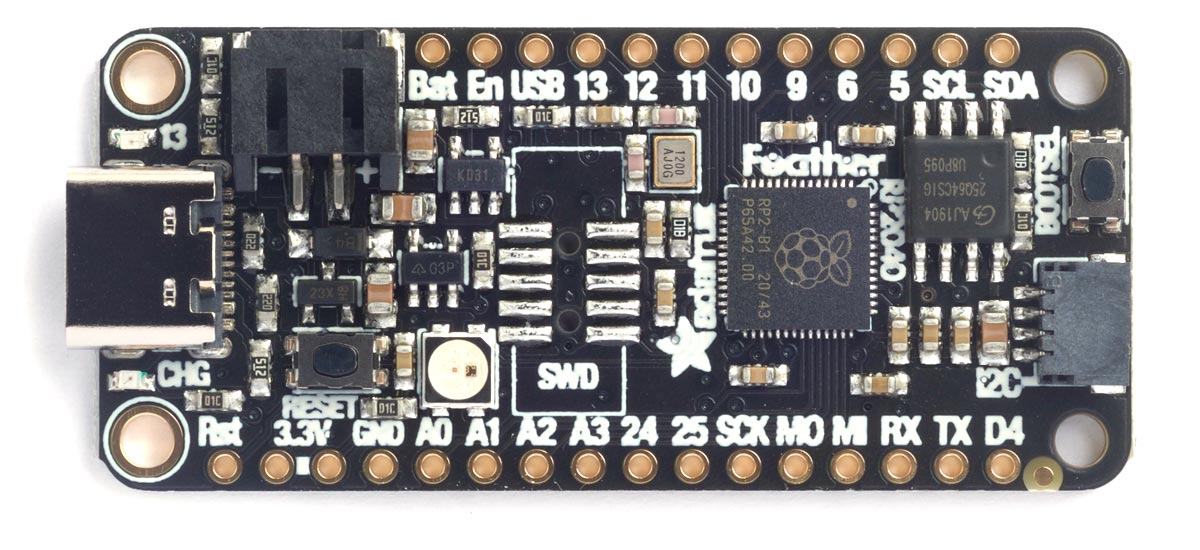

Adafruit have made an RP2040-based board in their Feather format. It includes a NeoPixel LED and an 8 MByte DataFlash chip:


A Stemma QT connector lets you daisy-chain I2C sensors and displays.

LED

The Adafruit Feather RP2040 has a red LED connected to the digital pin 13 which you can flash with the following program:

(defun blink (&optional x)
  (pinmode :led-builtin t)
  (digitalwrite :led-builtin x)
(delay 1000) (blink (not x)))

Run it by typing:

(blink)

All pins can also be used for analogue (PWM) output, so you can pulsate the LED slowly on and off with the program:

(defun pulse ()
  (let (down)
    (loop
     (dotimes (x 256)
       (delay 5)
       (analogwrite :led-builtin (if down (- 255 x) x)))
(setq down (not down)))))

Run it by typing:

(pulse)

Exit from either program by entering ~.

Analogue inputs

The Adafruit Feather RP2040 has four analogue inputs which you can access on digital pins 26 to 29. They have 12-bit precision.

Analogue outputs

You can generate an analogue output using PWM on any of the digital pins 0 to 29. By default the precision is 8 bits, but you can change it to a value from 4 to 16 bits by calling, for example:

(analogwriteresolution 16)

Playing notes

You can use the note function to play tunes on any pin. For example, the following function scale plays the scale of C on the specified pin:

(defun scale (pin)
  (mapc
   (lambda (n) (note pin n 4) (delay 500))
   '(0 2 4 5 7 9 11 12))
  (note))

For example, connect a piezo speaker between digital pin 10 and GND, and evaluate:

(scale 10)

Serial

The Adafruit Feather RP2040 has one accessible serial port: Serial1 on pin numbers 0 (TX) and 1 (RX).

SPI

The Adafruit Feather RP2040 has one accessible SPI port: SPI0 on pin numbers 20 (MISO), 19 (MOSI), 18 (SCK) and 17 (SS).

I2C

The Adafruit Feather RP2040 has one accessible I2C port: Wire1 on pin numbers 2 (SDA) and 3 (SCL), which also go to the Stemma QT connector.

Adafruit QT-Py RP2040

Adafruit have also made an RP2040-based board in their QT-Py format [3]. It provides 8 MByte of flash, and includes a NeoPixel LED:


A Stemma QT connector lets you daisy-chain I2C sensors and displays.

LED

The Adafruit QT-Py RP2040 doesn't have an LED.

NeoPixel

The NeoPixel is connected to digital pin 12, and its power is on digital pin 11.

Analogue inputs

The Adafruit QT-Py RP2040 has four analogue inputs which you can access on digital pins 26 (A3), 27 (A2), 28 (A1), and 29 (A0). They have 12-bit precision.

Analogue outputs

You can generate an analogue output using PWM on any of the digital pins. By default the precision is 8 bits, but you can change it to a value from 4 to 16 bits by calling, for example:

(analogwriteresolution 16)

Playing notes

You can use the note function to play tunes on any pin. For example, the following function scale plays the scale of C on the specified pin:

(defun scale (pin)
  (mapc
   (lambda (n) (note pin n 4) (delay 500))
   '(0 2 4 5 7 9 11 12))
  (note))

For example, connect a piezo speaker between digital pin 10 and GND, and evaluate:

(scale 10)

Serial

The Adafruit QT-Py RP2040 has one accessible serial port: Serial1 on pin numbers 20 (TX) and 5 (RX).

SPI

The Adafruit QT-Py RP2040 has one accessible SPI port: SPI0 on pin numbers 4 (MISO), 3 (MOSI), and 6 (SCK).

I2C

The Adafruit QT-Py RP2040 has two I2C ports: Wire0 on pin numbers 24 (SDA) and 25 (SCL), and Wire1 on pin numbers 22 (SDA) and 23 (SCL) which are accessible on the Stemma QT connector.
