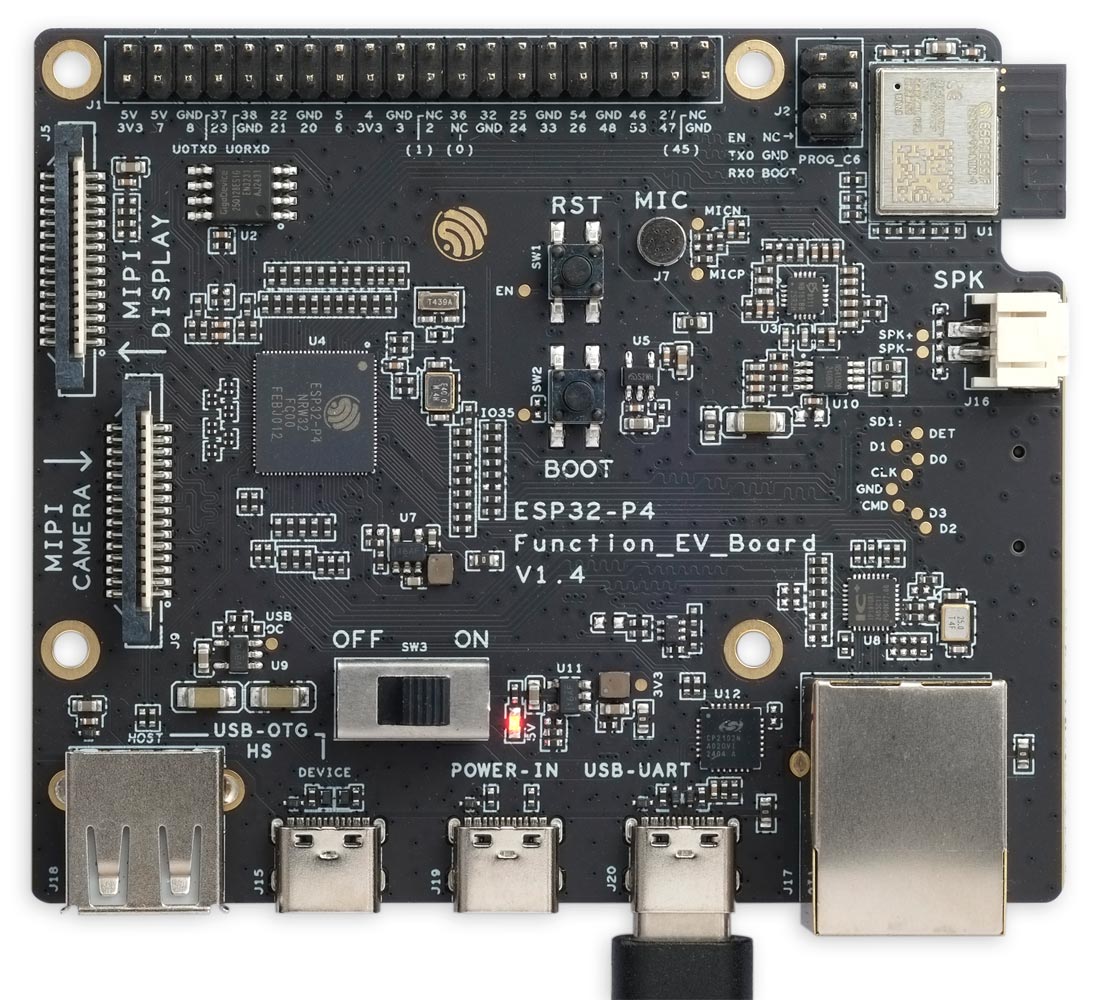

ESP32-P4 Function EV Board

The ESP32-P4 Function EV Board is a platform from Espressif for evaluating their new ESP32-P4 RISC-V processor. It's available from Espressif's store on AliExpress [1].


The board is based on Espressif's new ESP32-P4 chip which features a dual-core 400 MHz RISC-V processor (running at 360 MHz on the EV board), with 16 Mbytes of flash and 768 KB of on-chip SRAM. It can also support up to 32 Mbytes of PSRAM.

The board includes the following additional features:

  • An ESP32-C6-MINI-1 module which provides 2.4 GHz Wi-Fi 6 & Bluetooth 5 (LE).
  • A 7-inch capacitive touch screen with a resolution of 1024 x 600.
  • A 2MP camera with MIPI CSI.
  • A microphone.
  • An audio CODEC chip, audio amplifier, and loudspeaker connector.
  • An Ethernet chip and RJ45 Ethernet port.
  • A USB to UART chip.
  • A MicroSD Card slot (on reverse).
  • RESET and BOOT buttons.

The current version of uLisp doesn't yet support all these additional features, but I hope to add support in future releases.

For full information about the board see ESP32-P4-Function-EV-Board on docs.espressif.com.

Installing uLisp from the Arduino IDE

  • Install the ESP32 Arduino core version 3.1.0 or later.
  • Select ESP32 Arduino from the Board menu.
  • Select the ESP32P4 Dev Module board option.

You can leave all the other options at their defaults.

Upload uLisp

I recommend connecting to the board via the USB-UART connection.

  • Download the ESP version of uLisp release 4.7a or later from the Download uLisp page.
  • Select the board's USB port from the Port menu
  • Upload uLisp to the board.

Using uLisp

  • Select Serial Monitor from the Tools menu.
  • Enter Lisp commands.

LittleFS and save-image

The ESP32-P4 Function EV Board supports using LittleFS to allow you to save the entire workspace using (save-image).

The first time you call save-image LittleFS allocates the file system, and an error may be displayed. It should subsequently work without error.

Peripherals

Analogue inputs

The ESP32-P4 Function EV Board has 14 analogue inputs, on pins 16 to 23 and 49 to 54.

Serial

The ESP32-P4 Function EV Board has one serial port on pin numbers 38 (RX) and 37 (TX).

SPI

The ESP32-P4 Function EV Board has one SPI port on pin numbers 26 (SS), 33 (MISO), 32 (MOSI), and 36 (SCK).

I2C

The ESP32-P4 Function EV Board has one I2C port on pins 7 (SDA) and 8 (SCL).


  1. ^ ESP32-P4-Function-EV-Board on AliExpress.
